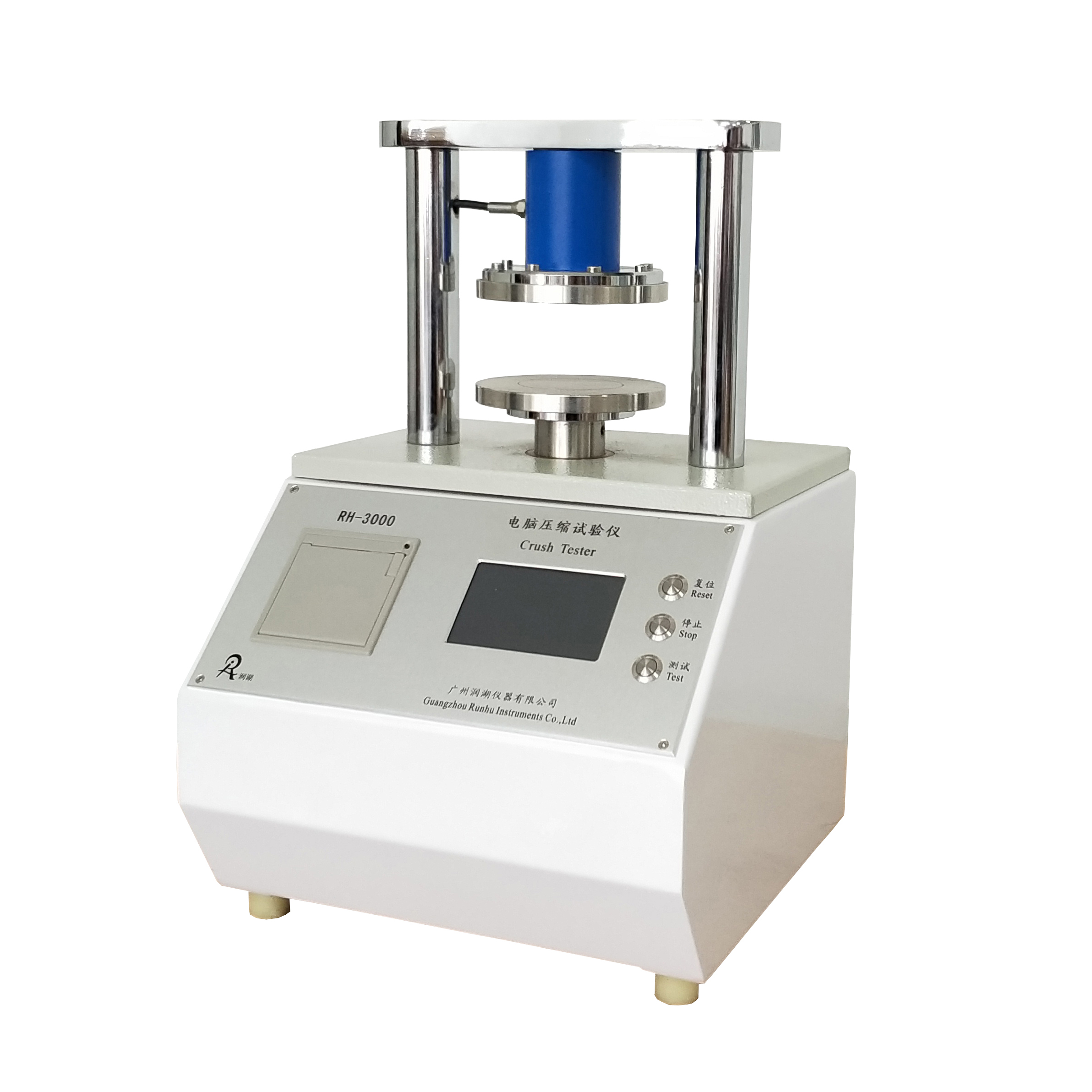

RH-3000 Crush Tester

RH-3000 Crush Tester is a new instrument that is used for all kinds of compression strength test.

Inventory: In stock

Reference Price: Get Latest Price



RH-3000 Crush Tester

Introduction:


RH-3000 Crush Tester is a new instrument that is developed by our company according to the new international standard. RH-3000 Crush Tester is high efficiency and easy to use.

RH-3000 Crush Tester applied for the following test items: The Cardboard Ring Crush Strength test (RCT), The Corrugated Board Edge Crush Strength test (ECT), The Corrugated Board Adhesive Strength test (PAT), The Corrugated Paper Flat Crush Strength test (FCT), corrugated paper flat compression strength test (CMT) and crushing strength test (CCT), and other products compression strength test. RH-3000 Crush Tester is using high-precision sensors, high-speed chip design, to ensure sampling accuracy.

It applies to the test strength of: RCT、CMT、CCT、ECT、FCT、and PAT.



Standards:


GB/T2679.8,GB/T6546,GB/T6548,GB/T2679.6,ISO13820,ISO3037,ISO7263,ISO12192,ISO3035,GB/T1048



Function:


The instrument is equipped with the corresponding devices that can carry out the following tests:

  1. Equipped with the RCT Accessories and RCT Sample Cutter, it can carry out the ring crush strength testing of paper and board (RCT);
  2. Equipped with edge crush (adhesion) sample cutter and the auxiliary guide block, it can carry out the edge compression strength test of the corrugated cardboard (ECT);
  3. Equipped with a peel strength test stand, it can carry out peel (adhesion) strength test of the corrugated board (PAT);
  4. Equipped with the flat sample cutter, it can carry out the flat compression strength test of the corrugated board (FCT);
  5. Equipped with vertical fluter and assistive devices, it can carry out the vertical test (CCT and CMT, vertical crush or flat crush strength test of the base paper of the cardboard after it is up).
  6. Equipped with the thickness test pad, it can carry out the thickness test of the paper, cardboard, corrugated board or any other kind of paper.



Technical Parameters:




Measurement Range (50~3000)N, Resolution 1N
 Accuracy Indication error±0.5%,Change of indication≤0.5%
Test Speed (12.5±2.5)mm/min
Return Speed (1-80)mm/min
Parallel of Pressboards <0.05mm
Max-distance of Pressboards ≥70mm
Weights About 34kg
Dimensions About 330 ×350 × 510 mm
Power AC110~240V

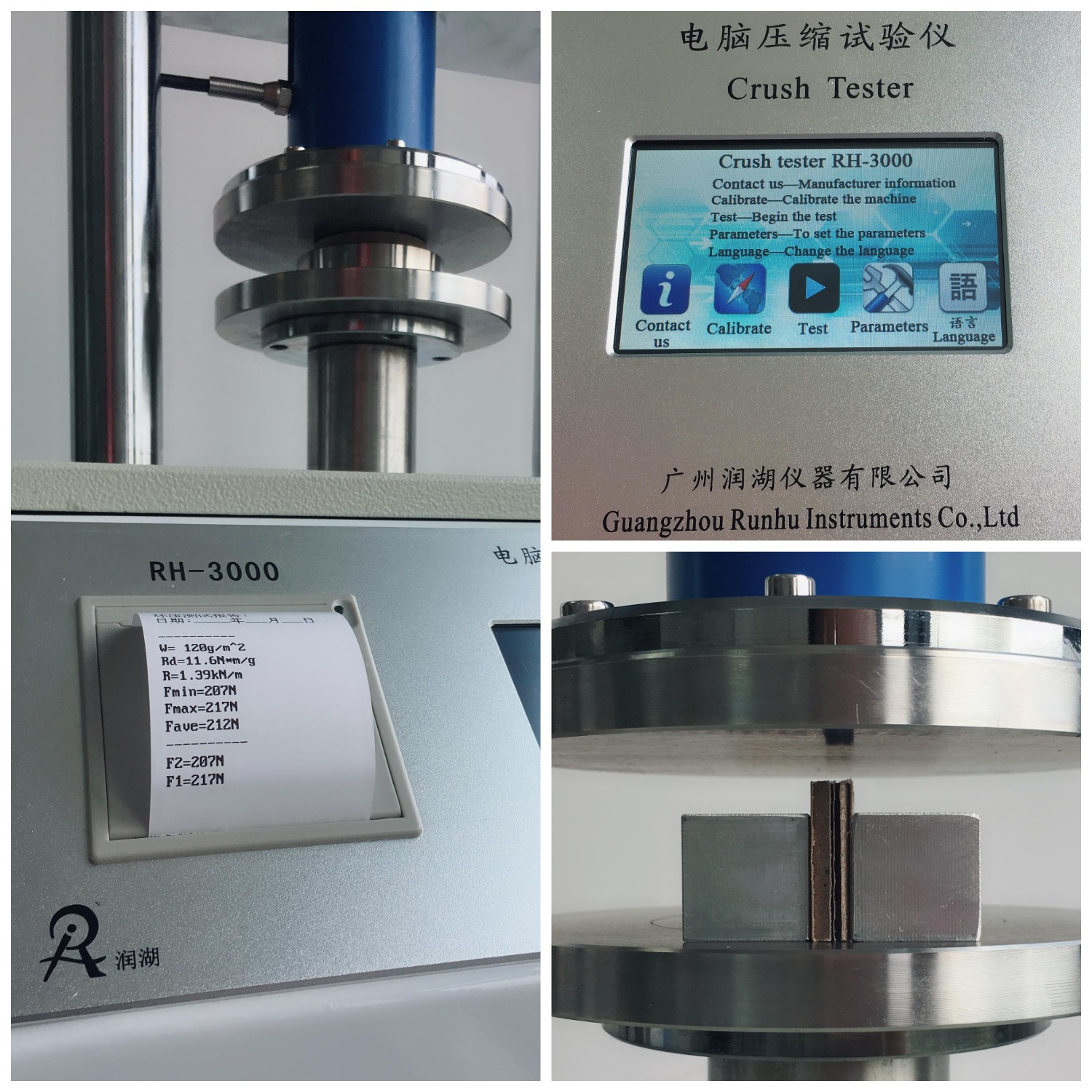

Product Features:


1. Adopt high precision load sensor, the accuracy of force can be controlled better than 1%, usually we control it within 0.5% out of factory.

2.Precision ball screw transmission, Aluminum-alloy control panel, reasonable design for upper and lower stainless steel plate.

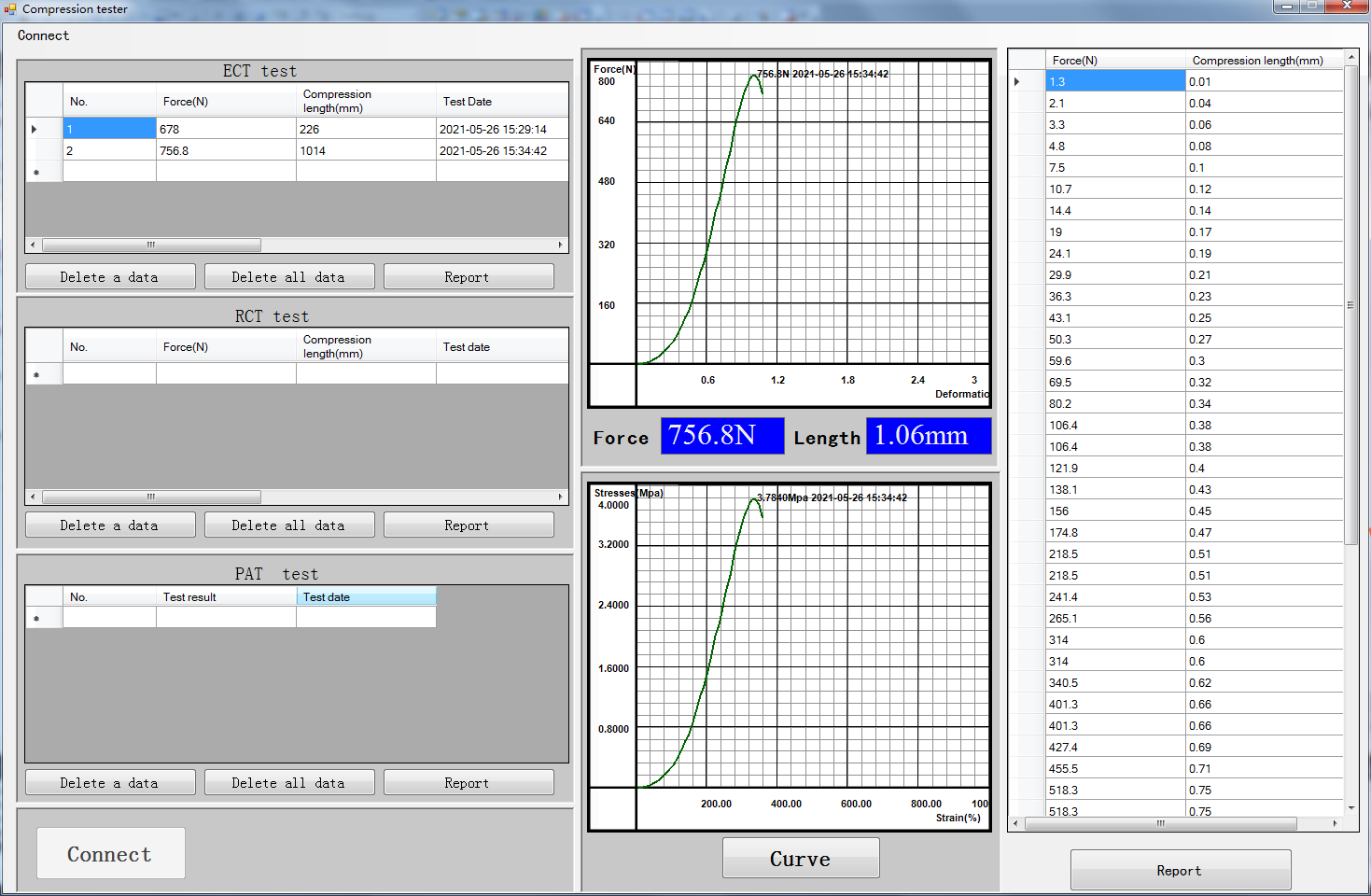

3.High resolution color touch screen operation system, automatic complete operation, has statistics function. Micro-printer,fast and clear printing. Can be connected to PC, save, output results and graphs with our professional software.

4. High performance stepper motor driven, USA chips control, ensure accurate transmission, fast and high efficient test.

5. Professional calibration procedure, user can calibrate the machine easily.

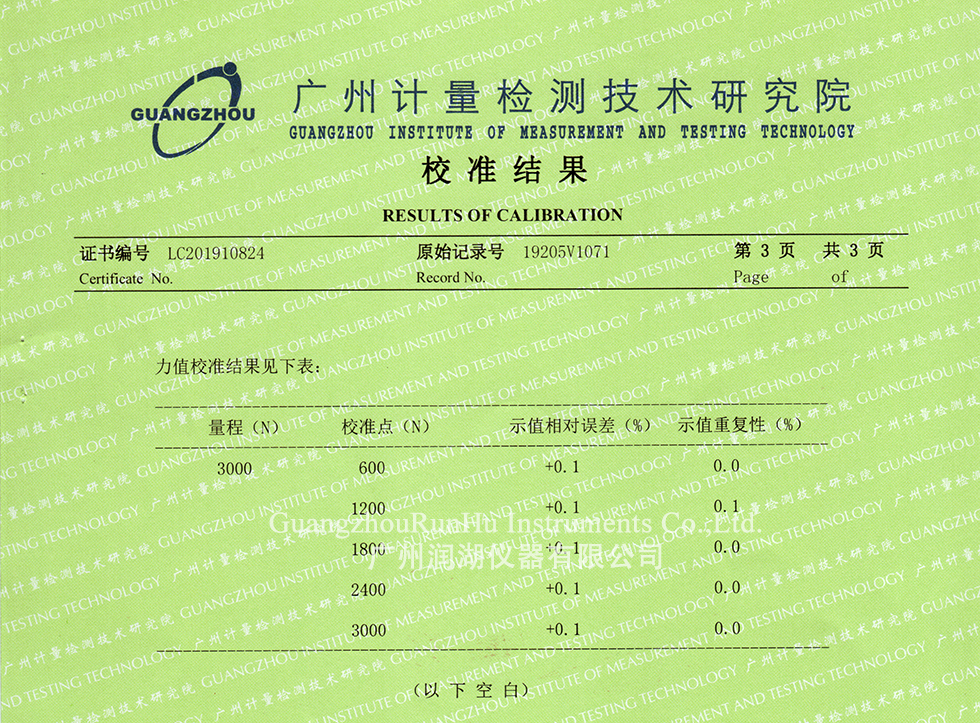

Third party measurement certificate (part 3):




About Runhu:


Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:


Production Facilities:


Qualification Certificate & Patents:


Packing & Delivery:




Our Services:


  1. Warranty: 1 year
  2. Customized support: OEM, ODM, OBM
  3. Each instruments must be carried out 100% quality examination and test when shipping anddelivery goods.
  4. Product use training, each of our product provide video training to show you how to install & operate.
