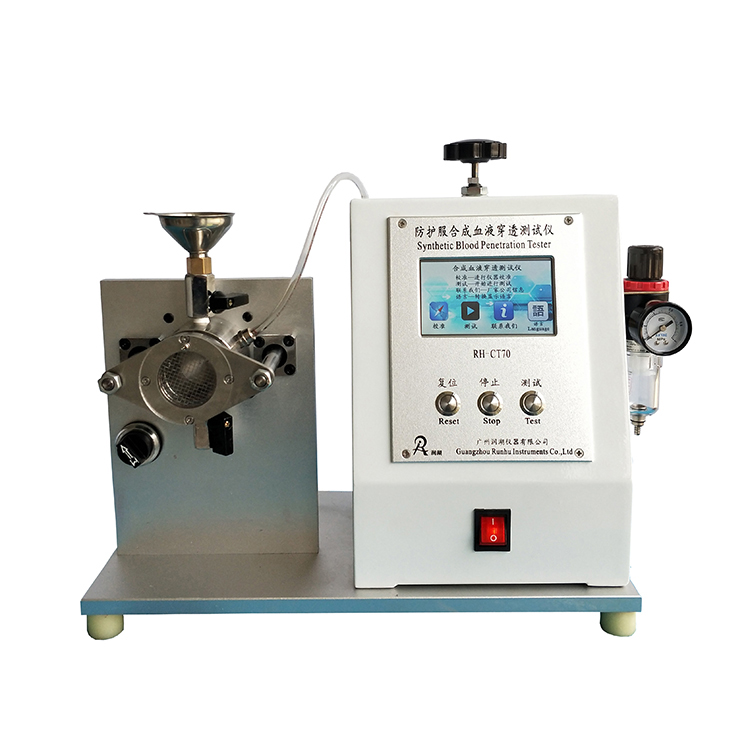

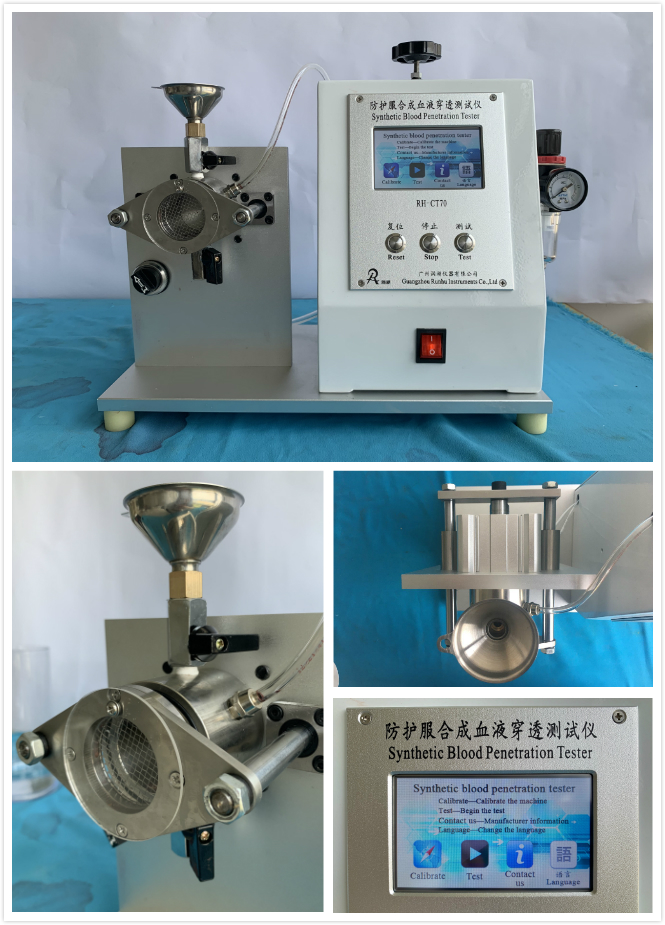

RH-CT70 Medical protective clothing Synthetic Blood Penetration Tester

Medical protective clothing Synthetic Blood Penetration Tester is suitable for the penetration test of synthetic blood spillage in medical protective clothing.

Inventory: In stock

Reference Price: Get Latest Price



RH-CT70 Medical protective clothing

Synthetic Blood Penetration Tester



Introduction:


RH-CT70 Medical protective clothing Synthetic Blood Penetration Tester is used to measure the penetration of synthetic blood and other liquid-derived liquid injection, to evaluate the safety of Medical protective clothing.

RH-CT70 Medical protective clothing Synthetic Blood Penetration Tester is suitable for the penetration test of synthetic blood spillage in medical protective clothing. This instrument is widely used in medical inspection department, safety inspection department and scientific research unit experiments, etc.

Standards:


YYT 0700-2008:Clothing for protection against contact with blood and body fluids —

Determination of the resistance of protective clothing materials to penetration by blood and body fluids —Test method using synthetic blood

YY/T0691-2008:Clothing for protection against infectious agents-Medical face masks-Test method for resistance against penetration by synthetic blood (fixed volume, horizontally projected)

BS ISO 16603-2004:Clothing for protection against contact with blood and body fluids —Determination of the resistance of protective clothing materials to penetration by blood and body fluids —Test method using synthetic blood

ASTMF1670-2008:Standard Test Method for Resistance of Materials Used in Protective Clothing to Penetration by Synthetic Blood

ASTM F1670/1671:Standard Test Method for Resistance of Materials Used in Protective Clothing to Penetration by Synthetic Blood

ASTM F1671-13:Standard Test Method for Resistance of Materials Used in Protective Clothing to Penetration by Blood-Borne Pathogens Using Phi-X174 Bacteriophage Penetration as a Test System

GB 19082-2009:Technical requirements for single-use protective clothing for medical use



Technical Parameters:


Test environment

Temperature (21 + 5) ℃, Relative humidity (85±10)%
Pressure

1.75kPa   3.5kPa  7kPa  14kPa  20kPa

Power

AC110~240V

Specimen Size

75mm×75mm
Pressure Area

28.27cm²

Retardation Net

304 stainless steel; open space ≥ 50%; bending ≤ 5mm under 14kpa
Clamp Torque

13.5N·m

Dimensions

About 470mm×200mm×340mm

Weight

About 12.7kg

Test Principle:


The resistance of a protective clothing material to penetration by blood and body fluids is determined by subjecting the material to synthetic blood as a body fluid simulant for a specified time and pressure sequence and observing if visible penetration of the liquid occurs. In the penetration test apparatus, the clothing material acts as a partition separating the body fluid simulant from the viewing side of the test cell. Any evidence of synthetic blood penetration constitutes failure.



Features:


  1. Touch screen control, easy to operate.
  2. The instrument fixture operation is simple, all stainless steel material, and durable.
  3. High precision pressure transducer, real-time stability, greatly improving the test efficiency and accuracy.
  4. Humanized operation, automatic timing when reaching the set pressure, and automatic reminder of the end of timing.

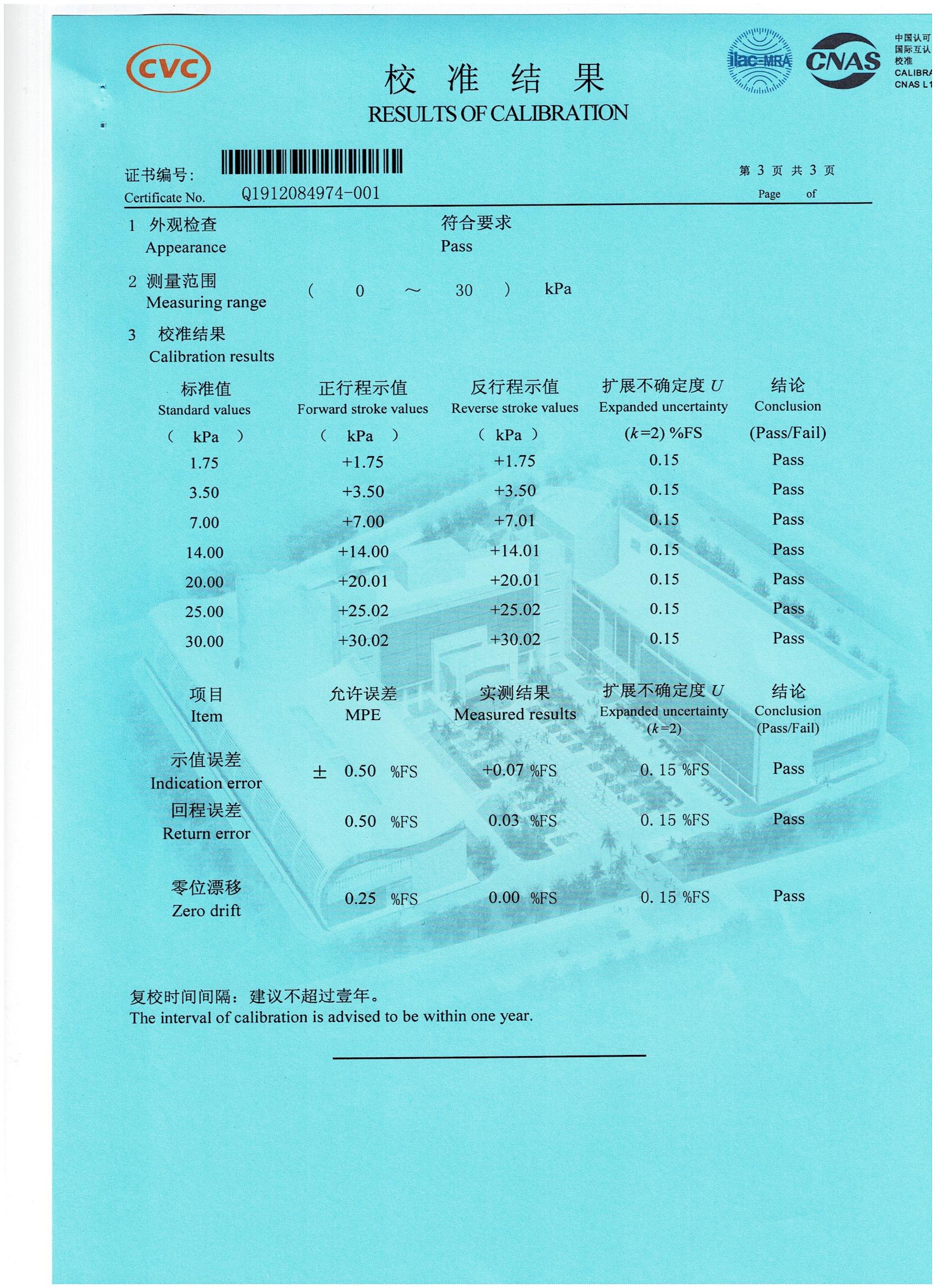

Third Party Measurement Certificate:




Qualification Certificate & Patents:




About Runhu:


Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:


Production Facilities:


Packing & Delivery:




Our Services:


  1. Warranty: 1 year
  2. Customized support: OEM, ODM, OBM
  3. Each instruments must be carried out 100% quality examination and test when shipping anddelivery goods.
  4. Product use training, each of our product provide video training to show you how to install & operate.
