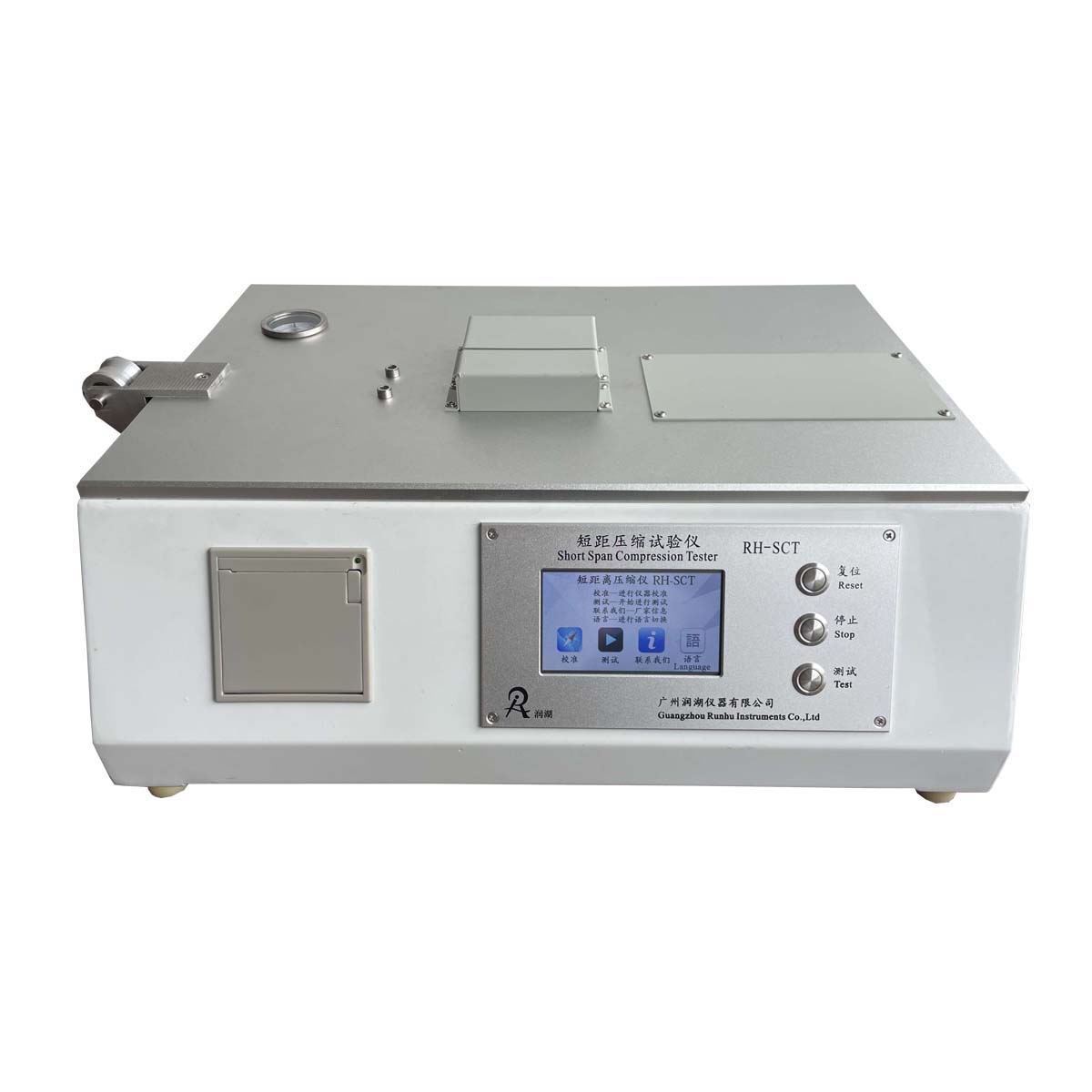

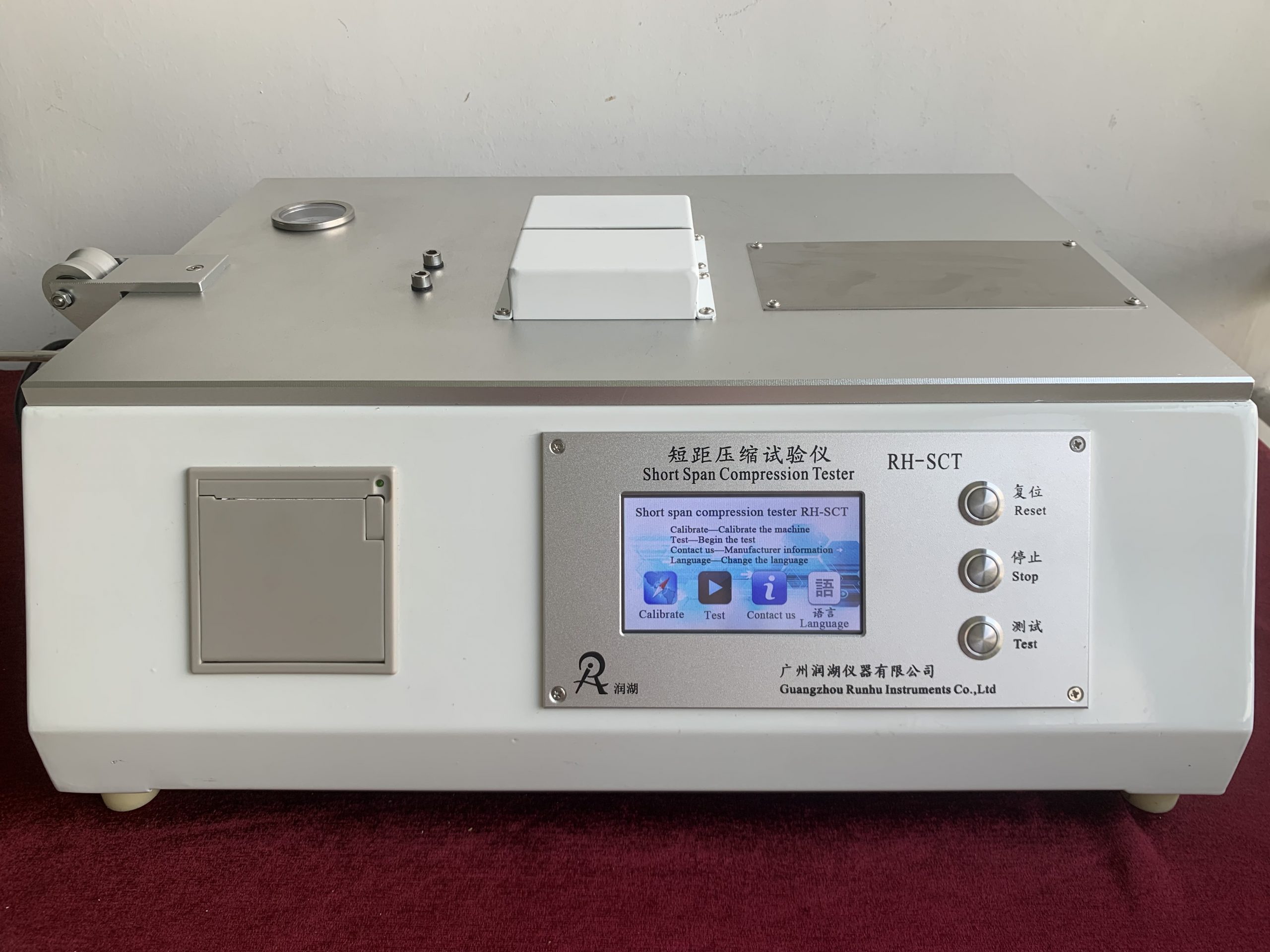

RH-SCT Short Span Compression Tester

RH-SCT Short Span Compression Tester is used to measure the compressive strength of paper and cardboard samples by the SCT method.

Inventory: In stock

Reference Price: Get Latest Price



RH-SCT Short Span Compression Tester

Introduction:

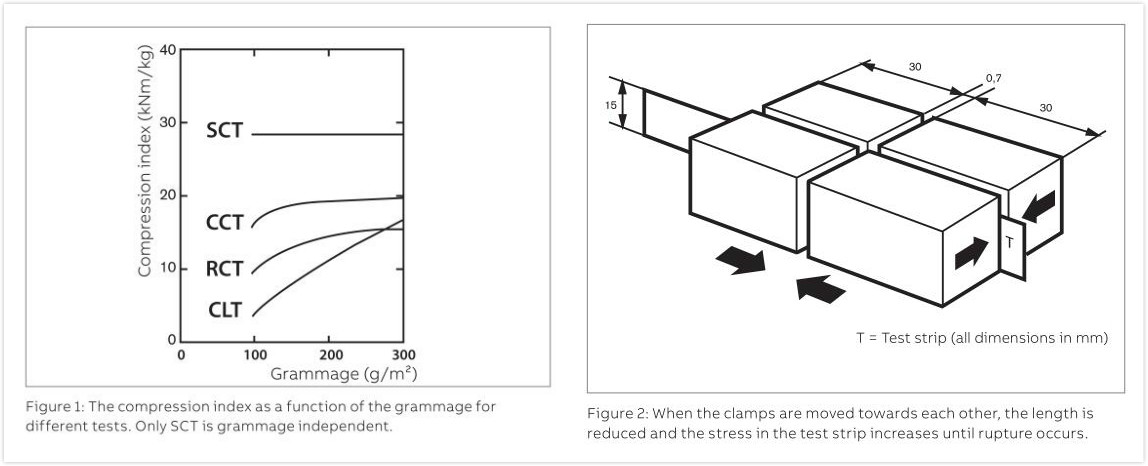

RH-SCT Short Span Compression Tester is used to measure the compressive strength of paper and cardboard samples by the SCT method. It is considered an important property and can be used to predict the performance of corrugated cardboard sheet used in the manufacture of corrugated cardboard.Compressive strength determines the stacking ability of corrugated boxes. The aim is to produce strong boxes, and at the same time use a minimum of raw material. Short Span Compression is considered an important property and can be used to predict the performance of container board used in the manufacture of corrugated boxes.



Standards:


QB_T2386-2017 Short span compression tester for paper and board

GBT2679.10 Paper and board-Compressive strength-Short span test

ISO 9895-2008 Paper and board-Compressive strength-Short span test

TAPPI T826 Short span compressive strength of containerboard

DIN 54518 Testing of paper and board – compression strength, short span test

BS 7325 Method for determination of the compressive strength of paper and board by the short span test



Technical Parameters:


Unit

N  kN/m  (N·m)/g

Measure Range

0~500N  (112lbf)

Accuracy

Indication error±1%,Indication fluctuation≤1%
Resolution

0.1N

Test speed

(1~10)mm/min (adjustable)

Adjustable span

(0.5~2)mm (adjustable)

Connections

RS232
Printer

Micro thermal printer

Dimensions

550×370×200 (mm)
Weight

21kg

Power

AC 110V~240V



Product Features:


  1. Force transducer with high precision, The factory accuracy is in the < 0.5%, better than ±1% ISO standards.
  2. Precision ball screw transmission, Aluminum-alloy control panel. The high quality stainless steel clamps ensure the durability of the instrument.

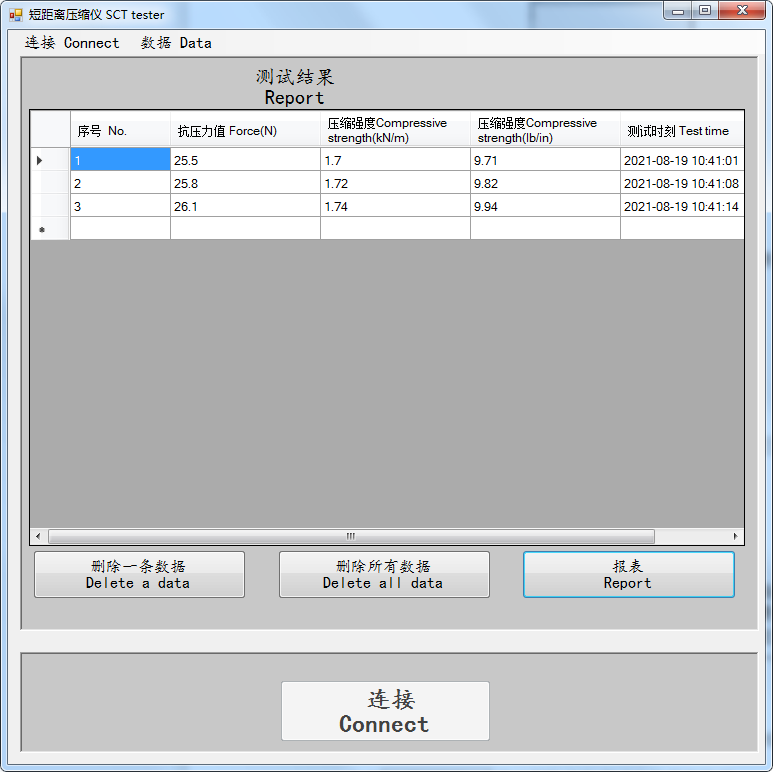

  3. High resolution color touch screen operation system, automatic complete operation, has statistics function. Micro-printer,fast and clear printing. Can be connected to PC, save, output results.

4. High performance stepper motor driven, USA chips control, ensure accurate transmission, fast and high efficient test.

5. Professional calibration procedure, user can calibrate the machine easily.Factory equipped with calibration weights, users can easily self-calibration instrument.



About Runhu:


Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:


Production Facilities:


Qualification Certificate & Patents:


Packing & Delivery:




Our Services:


  1. Warranty: 1 year
  2. Customized support: OEM, ODM, OBM
  3. Each instruments must be carried out 100% quality examination and test when shipping anddelivery goods.
  4. Product use training, each of our product provide video training to show you how to install & operate.
