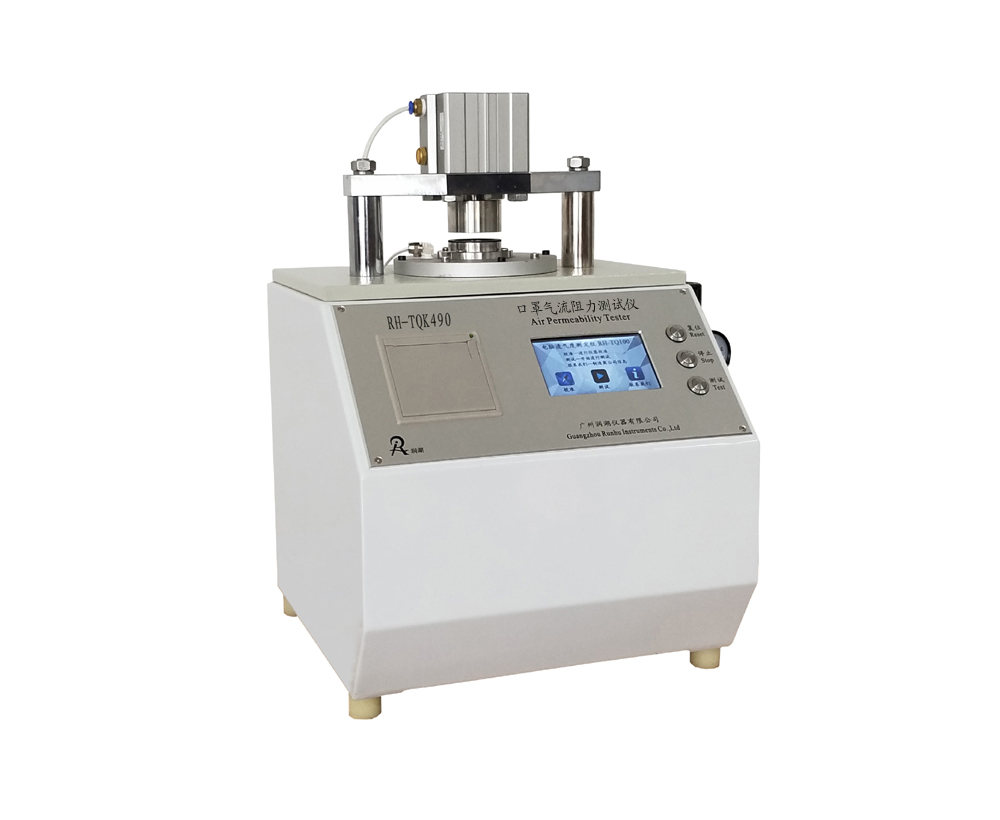

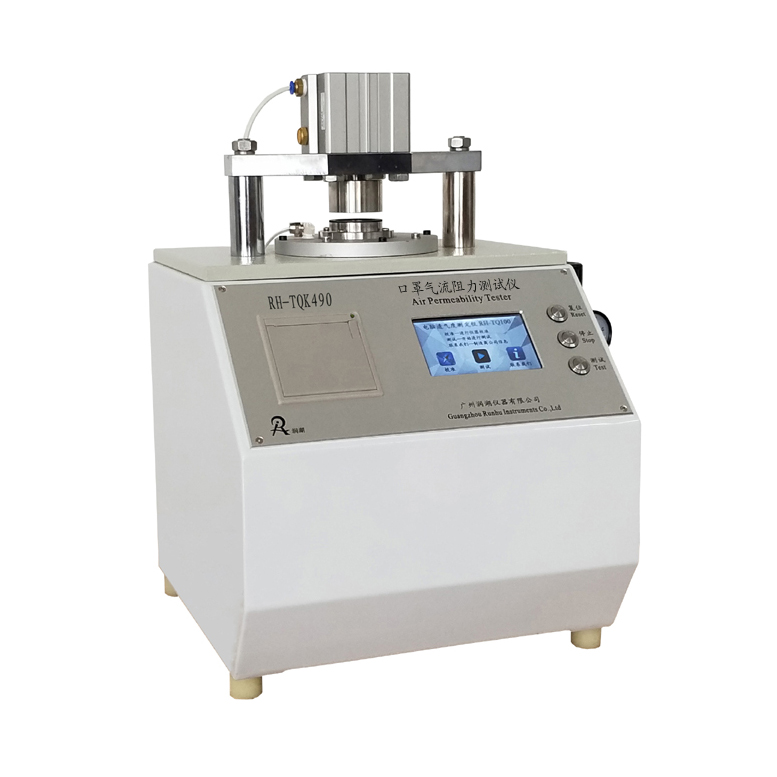

RH-TQK490 Mask Air Permeability Tester

RH-TQK490 Mask Air Permeability Tester is an ideal instrument for testing air permeability of various masks, leather, cloth, fabric, paper, cardboard or other sheet objects.

Inventory: In stock

Reference Price: Get Latest Price



RH-TQK490 Mask Air Permeability Tester

Introduction:


RH-TQK490 Mask Air Permeability Tester is using the latest technology. It is an ideal instrument for testing air permeability of various masks, leather, cloth, fabric, paper, cardboard or other sheet objects. RH-TQK490 Mask Air Permeability Tester is a fully integrated automatic instrument.



Standards:


YY0469-2011“Medical surgical masks”, YY/T 0969-2013 “Disposable medical surgical masks”, EN 14683:2019 ISO9237, GB/T458, ISO5636/2, QB/T1667, GB/T22819, GB/T23227, ISO2965, YC/T172, GB/T12655, EN 14683:2019 “Medical face marks – Requirements and test methods”, T/CNTAC 55—2020, T/CNITA 09104—2020, etc.

Working Principle:


Principle of fabric permeability test:

According to the principle of pressure difference method, place the pre-processed sample between the upper and lower test heads. A constant pressure difference is formed on both sides of the sample. Under the action of pressure difference, the air flows from the upper test head through the sample to the lower test head, and the air permeability of the sample is calculated according to the area, pressure difference and flow rate of the sample.



Principle of mask resistance test:

Measured the pressure difference between the two sides of the sample is by passing 8 L / min of air.



Technical Parameters:




Measure Range

0~400L/dm²/min, 0~200 (Pa/ cm²),0.01~600mm/s

Unit

Pa/ cm²   Pa  L/dm²/min  μm/(Pa•s)  mm/s   m/s

Accuracy

0.01 (Pa/ cm²)  0.1Pa  0.01  L/dm²/min

Linear Error

<1%

Measuring Area

4.9cm²

Air Flow Rate (Mask Test)

8L/min

Pressure Difference

0kPa~2kPa

Weights

About 25kg

Dimensions

420×340×450 mm
Power

AC110~240V

Display

Touch screen in English display

Product Features:


  1. Using US computer chip andstepper motor, coupled with reasonable design precision machining, to ensure the equipment is of high accuracy and repeatability. The calibration of the pressure sensor and flow is traceable.
  2. The instrument uses microcomputer technology, the test process is fully automated,fast and accurate. Touch-screendisplay results, and data recording and processing functions, with printing output.
  3. This instrument has the high superiority. It can set the higher pressure difference for the paper with the lower permeability, and set the lower pressure difference for the paper with the higher permeability, easily and accurately measure the result.
  4. The test of the permeability tester is automatic and fast, and the accuracy of the test results is guaranteed.This instrument effectively avoids these problems such as mishandling or low reproduction rate of test results.

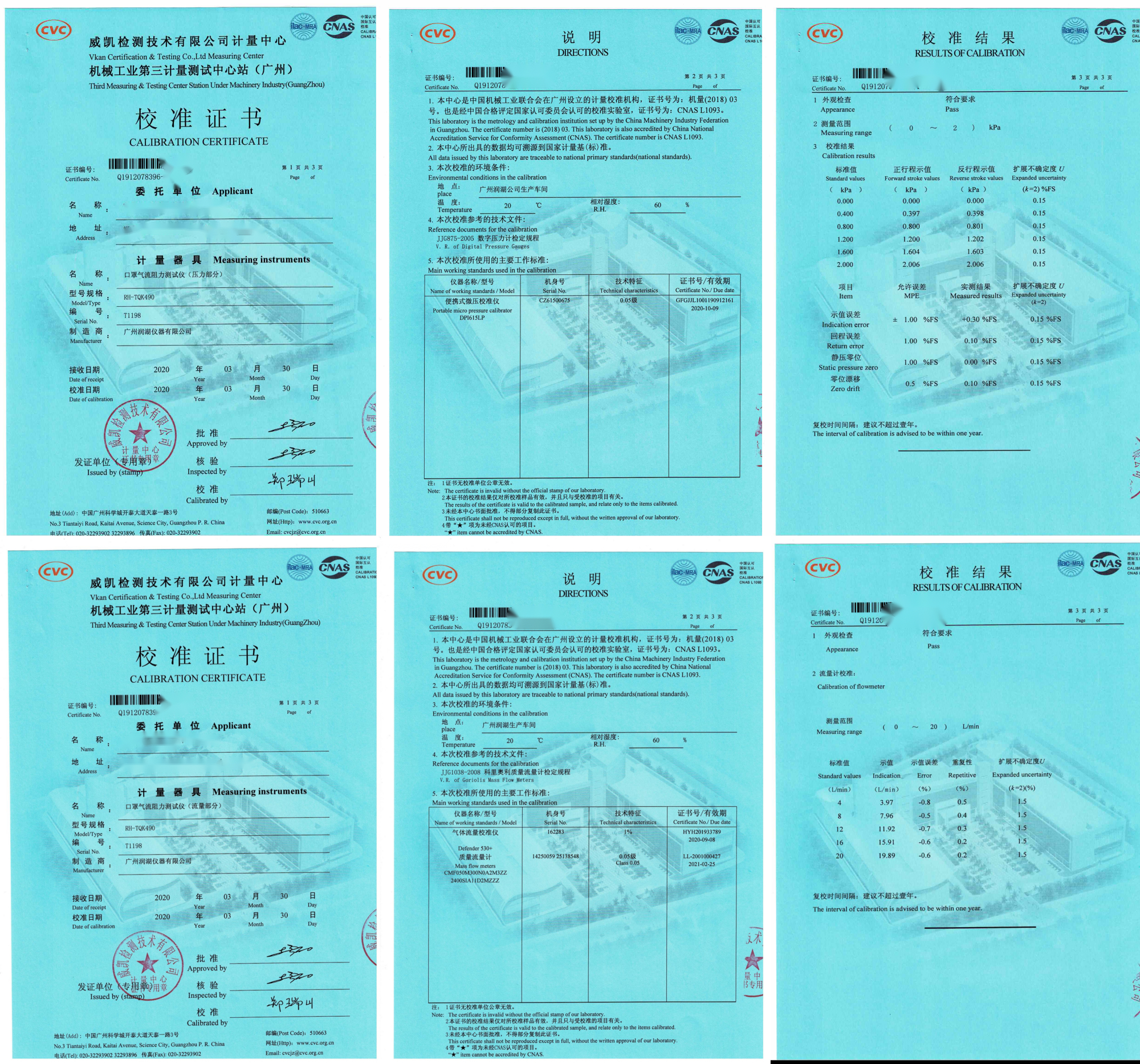

Third Party Measurement Certificate:




About Runhu:


Guangzhou Runhu Instrument Co., Ltd. is a professional instrumentation company consisting of research, production, sales, and technical service. As a high-tech company, Runhu’s main production includes professional testing equipment and facilities of paper, packaging, printing, plastic film and tobacco sheet. The headquarters of the company locates in Tianan Energy-saving Technology Park, Panyu District, Guangzhou.

Runhu has a research team formed by several top technical professionals of the country. Its core innovational concept is to develop more advanced and more precise instruments. And it has developed a multi-series of high-quality and patented products. The quality of its main products (such as compression tester, bursting strength meter, tear tester, paper stiffness device, paper tensile testing machine, tobacco filled level detector, etc.) is of the leading technical level in the country better than many domestic counterparts and has reached an international advanced level. Some other products (such as grooves instrument, cardboard layer with strength meter, crease stiffness device, thin water-resistant device, etc.) has filled the domestic production gap.

Runhu has invested its own research and development center, independent mechanical plant, assembly lines and product quality inspection workshop. There are advanced production and testing equipment in the factory. Through scientific and strict management, product quality is ensured and thus reliable.

Runhu’s philosophy is “Quality first, Customer first” that aims at providing customers with excellent quality, full-featured products. Over the years, our products win users alike by its full functions, reasonable structure, simple manipulation, stable performance, and accurate data. Our market includes China, Southeast Asia, South Asia, Middle East, Russia, Europe, Africa, North America, South America, Australia and other countries and regions. We will keep making the greatest effort in improving the quality of our products and after-sales service. Products sold are warranted life-long maintenance service. For the convenience of customers, the company will also provide customers with equipment supplies and spare parts.

Focusing on domestic market and striving to expand international market, our company is on the way to be one of the largest and best international equipment manufacturing enterprises.



Inventory:


Production Facilities:


Qualification Certificate & Patents:


Packing & Delivery:




Our Services:


  1. Warranty: 1 year
  2. Customized support: OEM, ODM, OBM
  3. Each instruments must be carried out 100% quality examination and test when shipping anddelivery goods.
  4. Product use training, each of our product provide video training to show you how to install & operate.
